04PB2LF003
现货供应04PB2LF003
04PB2LF003
商品品牌:MADISON
Madison Cable麦迪逊高端高品质高速电缆,2对30AWG计算机通讯线缆04PB2LF007,Differential Impedance: 100 ± 5 Ohms @ TDR ;Mutual Capacitance: 15.5 pF/ft [51 pF/m] Nominal ; Time Delay: 1.55 ns/ft [5.1 ns/m] Nominal;Time Delay Skew (Within Pair): 50 ps/5.5 m Maximum;
邮件询04PB2LF003 我要询价     QQ在线客服    电话:0755-86250632
您在本网站所询的商品,我们的工作人员将 电话联系您并做最终确认。感谢您对本站的关注。另外网站商品图片及资料仅供参考,请以实物为准。
04PB2LF003 详细介绍

04PB2LF003】Madison Cable麦迪逊高端高品质高速电缆,2对30AWG 10G TURBOTWIN CABLE计算机通讯线缆04PB2LF003



04PB2LF003 PROPRIETARY DESIGN
THIS CONFIDENTIAL DOCUMENT HAS BEEN RELEASED WITH THE UNDERSTANDING THAT IT SHALL NOT BE SENT TO ANYONE OTHER THAN THE ORIGINAL INTENDED RECIPIENT WITHOUT PRIOR AUTHORIZATION FROM TE CONNECTIVITY/MADISON CABLE .

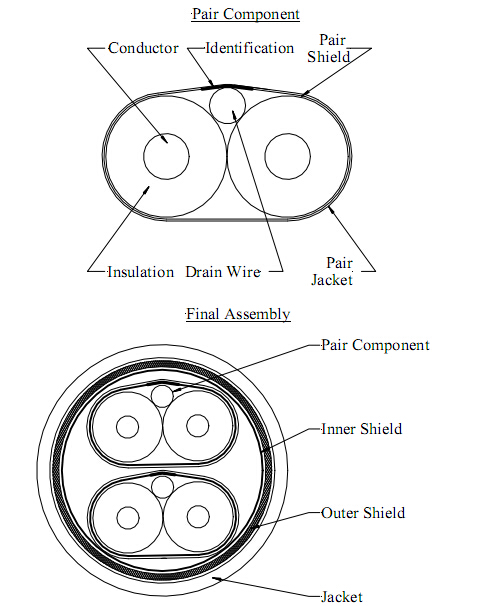

04PB2LF003 Final Assembly
Core: 2 Pairs (#1-2) Cabled Together
Inner Shield: Aluminum/Polyester/Aluminum Tape, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.026 Inches [0.66 mm] of Flexible PVC, Color – Black
Diameter: 0.172 Inches [4.37 mm] Nominal
Print Legend (White Ink): “MADISON CABLE (UL) TYPE CL2 75°C 30 AWG  CSA AWM II A/B 80°C 30V FT4 TurboTwin™ 10G 102-0106 RoHS COMPLIANT

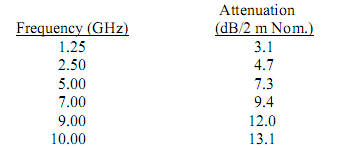

04PB2LF003 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Mutual Capacitance: 15 pF/ft Nominal
Time Delay: 1.55 ns/ft Nominal
Time Delay Skew (Within Pair): 50 ps/5.5 m Maximum
Time Delay Skew (Between Pair): 350 ps/5.5 m Maximum



Differential to Common Mode Conversion (SCD21): 28 dB Nominal
Conductor DC Resistance: 0.10 Ohms/ft Nominal @ 20°C


04PB2LF003 MECHANICAL CHARACTERISTICS
Bend Radius (5 x OD): 1 Inch Minimum, tested in accordance with SFF 8417

04PB2LF003 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code
CSA Certification: AWM II A/B 80°C 30 Volts FT4
RoHS Compliance: In Accordance to European Directive 2002/95/EC, Issue 13.2.2003
